Description

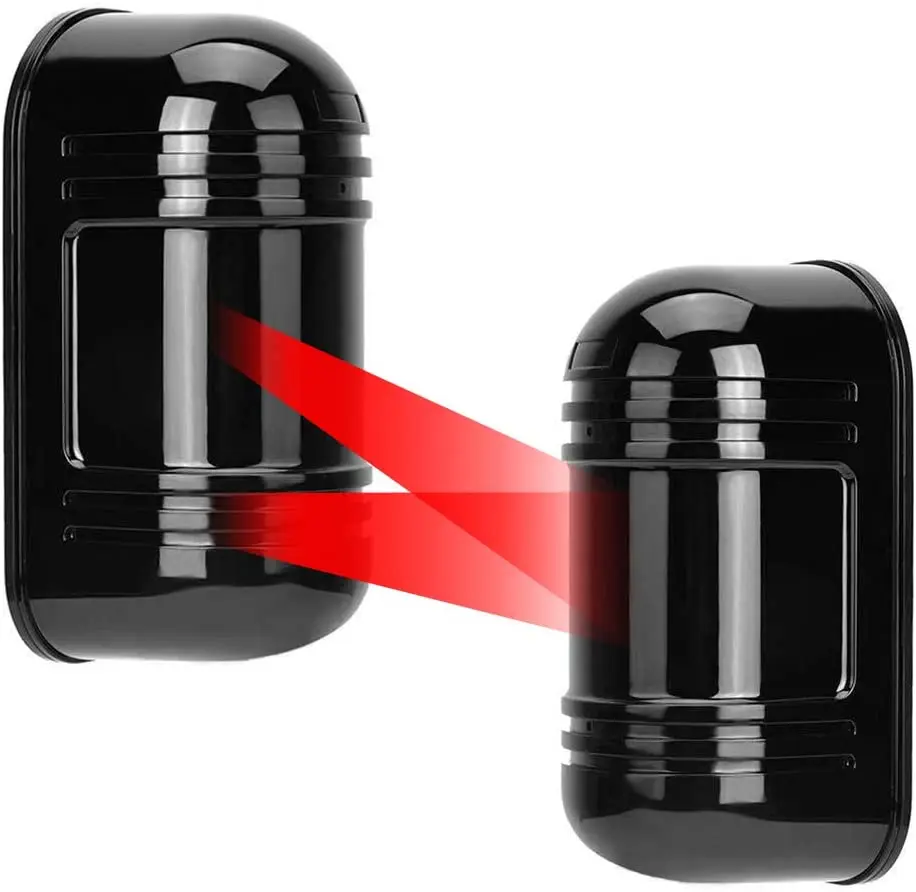

Enhance the safety and security of your property with the Waterproof Dual Beam Infrared Sensor. Designed for gates, garage doors, barriers, and perimeter protection, this advanced sensor uses dual-beam infrared technology to deliver precise detection with minimal false alarms.
With a detection range of 20–150 meters, adjustable horizontal and vertical angles, and intelligent power transmission, it ensures reliable operation in all weather conditions. Built with professional DSP chips and strong anti-interference design, this sensor is a trusted choice for both residential and commercial security systems.
🔹 Key Features
Long Detection Range: Infrared transmission from 20m up to 150m.
Waterproof & Weatherproof: Operates reliably in temperatures from -25°C to +55°C and up to 95% humidity.
Intelligent Power Transmission: Automatically adjusts to environmental conditions, extending sensor life.
Dual Beam Technology: Reduces false alarms by requiring both beams to be interrupted.
Flexible Installation: 180° horizontal and ±20° vertical adjustment for accurate alignment.
Professional Performance: Built-in DSP chip for advanced fault detection and strong anti-interference.
Safety Outputs: Supports NC & NO alarm outputs, tamper protection included.
🔹 Specifications
Infrared Transmission Distance: 20–150m
Light Source: Infrared digital pulse
Response Speed: 50–700 ms
Alarm Output: NC & NO (max AC/DC 30V, 0.5mA)
Tamper Output: NC (max DC 24V, 0.5A)
Operating Voltage: DC 12–24V / AC 10–18V
Operating Temperature: -25°C ~ +55°C
Operating Humidity: 5%–95% RH
Horizontal Adjustment: 180° (±90°)
Vertical Adjustment: 20° (±10°)
🔹 Package Includes
1 × Waterproof Dual Beam Sensor (Transmitter + Receiver)
Mounting Accessories
✅ The Waterproof Dual Beam Infrared Sensor is ideal for automatic gates, garage doors, access control, barriers, and perimeter security systems, providing dependable detection in any environment.
